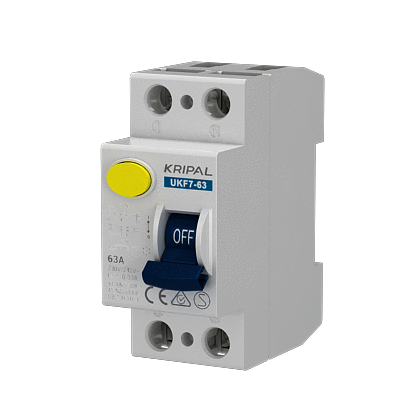

Dual function terminal blocks on both sides can be connected to bus bar and single core conductor at the same time;
Multiple leakage action current specifications, easy to achieve selective protection;
It can prevent misoperation caused by switching operation of electronic equipment;
This product complies with IEC161008-1 and GB/T 16916.1.
| Type | 2P, 4P |
|---|---|
| Voltage | 25A ~ 30mA, 40A ~ 30mA, 63A ~ 30mA, 25A ~ 100mA, 40A ~ 100mA, 63A ~ 100mA, 63A ~ 300mA |
Key Features:
Rated Current: 100/125/150/200/250A
Voltage Rating: DC 1000V
Breaking Capacity: 15kA (15,000A)
Ultimate Impulse Voltage (Uimp): 12kV
Operating Temperature: Up to 40°C
Compliance Standards: GB/T14048.2, IEC 60947-2 (Cat. A)
Terminal Connection: Suitable for 6mm² conductors
Mounting: DIN rail compatible
Safety & Usability:
Manual Trip Function: “PUSH TO TRIP” for quick emergency disconnection.
Clear Status Indicators: “OFF/ON” positions with visible switch toggle.
High Protection: Rated for industrial and commercial DC systems, ensuring protection against overloads and short circuits.
Applications:
Ideal for solar power systems, EV charging stations, battery storage, and other DC power distribution setups requiring robust circuit protection.

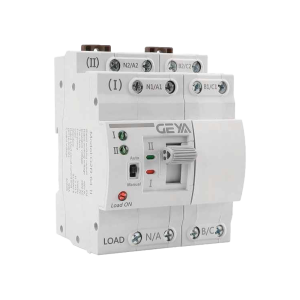

G2R-63 II DIN Rail Modular Automatic Transfer Switch
The GEYA G2R ATS is a top-tier automatic transfer switch engineered for low-voltage protection systems.Equipped with over-voltage and under-voltage protection function, Designed for reliability and efficiency, it ensures seamless power transitions during outages, safeguarding your equipment and operations. With advanced technology and robust build quality, the G2R ATS is ideal for applications requiring high dependability and rapid response.
Rated Operating Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Impulse Withstand Voltage: 8kV
Rated Operating Voltage: AC220V, AC110V
Pole Configuration: 2P, 4P
Rated Short-Circuit Breaking Capacity: 5kA
Geya-G2R-ATS-catalog
