It is applicable to the direct start and stop control of AC motors with AC 50Hz or 60Hz, rated voltage up to 690V and rated control power up to 15kW, and plays a protective role in overload and phase failure of three-phase asynchronous motors.
The magnetic starter shall comply with IEC60947-4-1 and GB/T 14048.4 standards

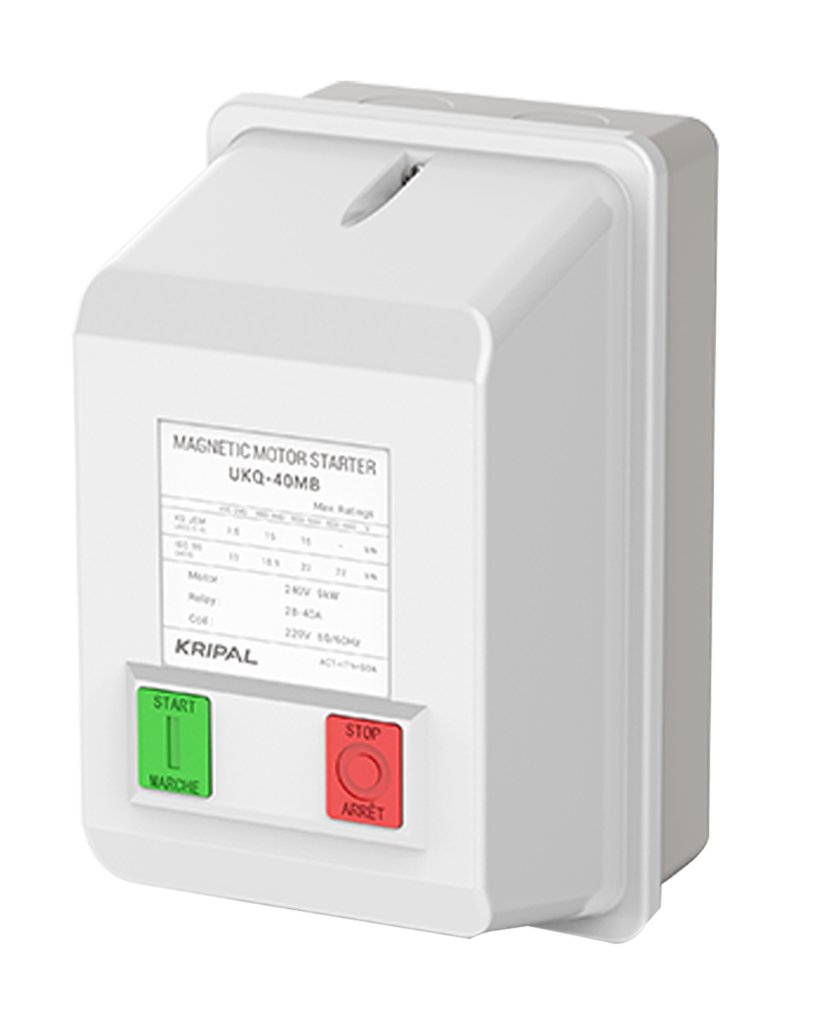

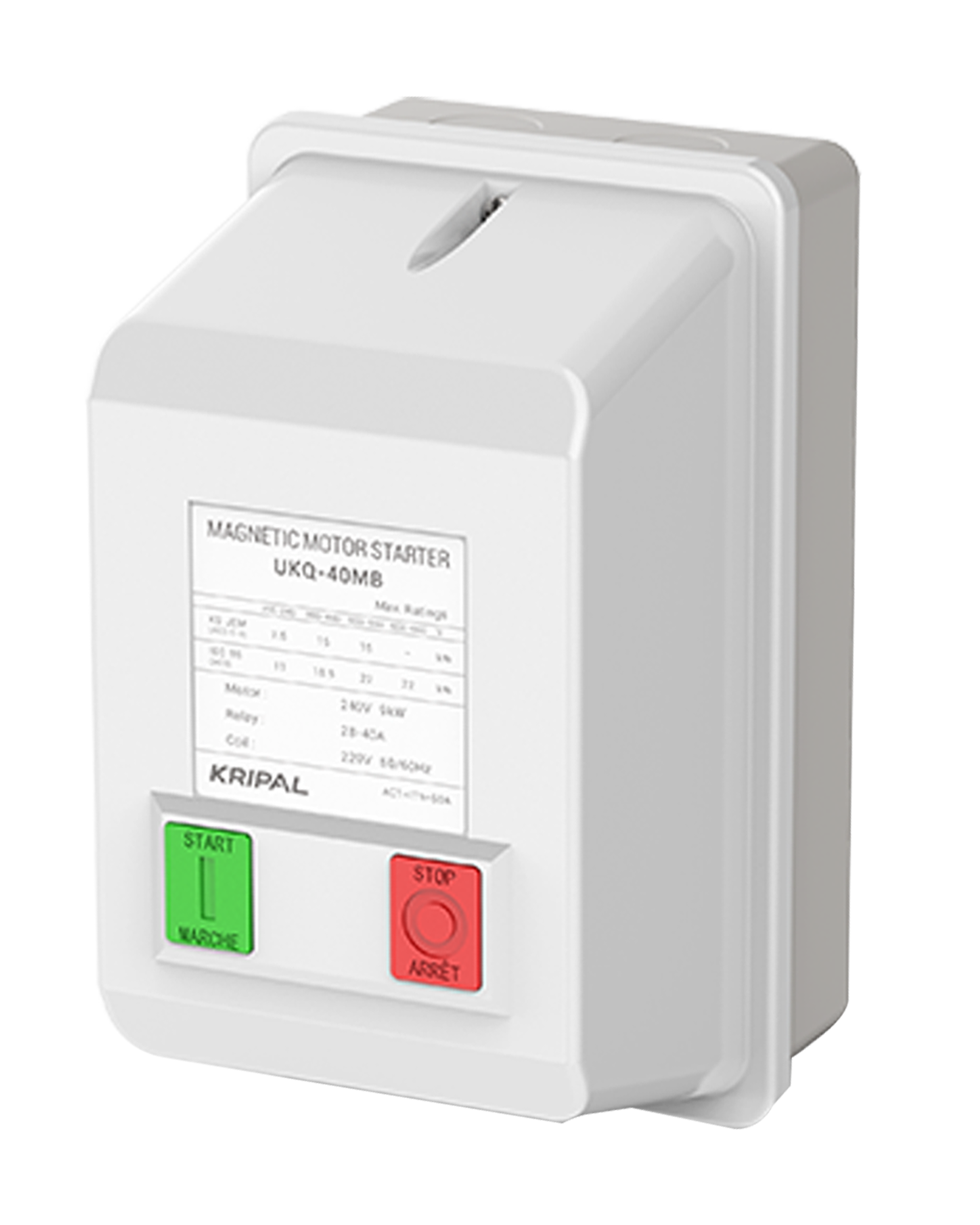

Kripal Motor Starter
Price range: 75,000.00 Ks through 175,000.00 Ks
| Type | 1Hp, 2Hp, 3Hp, 5Hp, 7.5Hp, 10Hp, 15Hp, 18Hp, 20Hp |
|---|---|
| Voltage | (1.5 – 2.5)A, (2.5 – 4)A, (4 – 6)A, (6 – 9)A, (9 – 13)A, (12 – 18)A, (16 – 22)A, (24 – 36)A, (28 – 40)A |
Related products
-

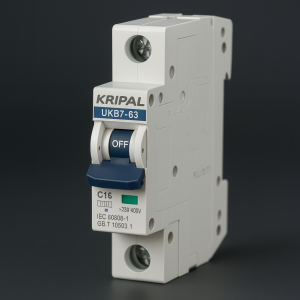

KRIPAL MCB (Miniature Circuit Breaker)
Price range: 8,600.00 Ks through 95,000.00 Ks
အဓိက အချက်များ
- 🔒 ကာကွယ်မှု – Overload နှင့် Short-Circuit ကာကွယ်မှု
- ⚡ အလုပ်လုပ်ဗို့အား – 230V/400V AC (50Hz/60Hz)
- 📊 အဆင့်များ – 6A – 63A (မော်ဒယ်အလိုက်)
- 🔄 Tripping Curve – C Curve (အများဆုံးအသုံးပြုသော စံ)
- 🛠️ Breaking Capacity – 6kA / 10kA (Fault Current Handling မြင့်မား)
- 🧰 တပ်ဆင်ခြင်း – DIN rail ပေါ်တွင် အလွယ်တကူ တပ်ဆင်နိုင်သည်
- 🌍 စံချိန်စံညွှန်း – IEC60898-1, CE အောင်လက်မှတ်ရရှိပြီး
- 🔋 တည်ခံမှု – အသုံးကြာရှည်ပြီး Switching ယုံကြည်စိတ်ချရသည်
- 📟 ပြသချက် – ON/OFF အခြေအနေ ပြသမီတာပါရှိသည်
- 🛡️ ကာကွယ်မှုအဆင့် – IP40 (Front Mounted)
-

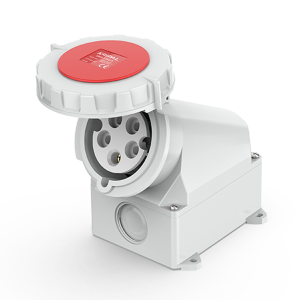

Kripal Wall mounted socket (UKS)
Price range: 63,000.00 Ks through 155,000.00 Ks
Wall Mounted Socket
-
Kripal Thermal Overload Relay (UKH)
Price range: 29,700.00 Ks through 210,000.00 Ks
UKH-22Thermal overload relay
UKH-40Thermal overload relay
UKH-85Thermal overload relay
-

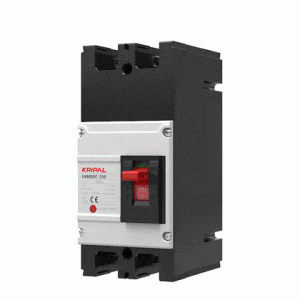

Kripal DC MCCB Breaker
