Kripal Thermal Overload Relay (UKH)

SKU: N/A Category: KRIPAL Brand: KRIPAL

Ampere

"UKH(1-1.6)"
"UKH(1.6-2.5)"
"UKH(2.5-4)"
"UKH(4-6)"
"UKH(5-8)"
"UKH(6-9)"
"UKH(7-10)"
"UKH(9-13)"
"UKH(12-18)"
"UKH(16-22)"
"UKH(18-26)"
"UKH(24-36)"
"UKH(28-40)"
"UKH(54-75)"
"UKH(63-85)"
"UKH(85-125)"

Clear

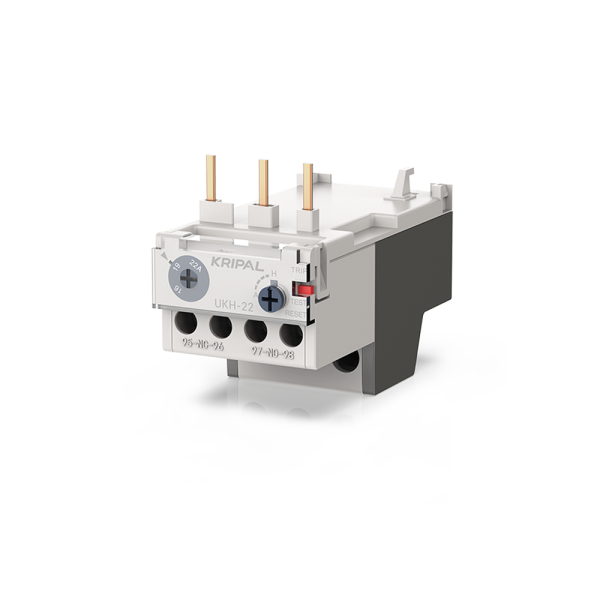

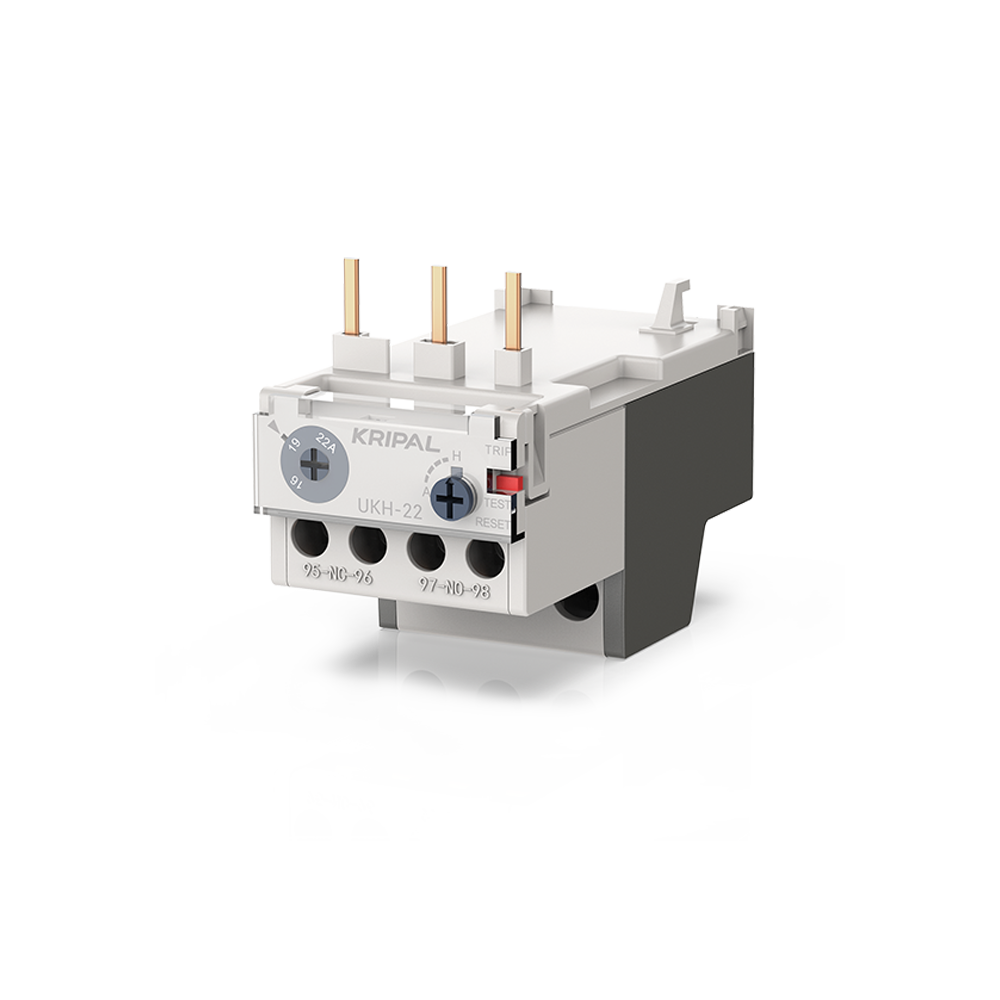

UKH-22Thermal overload relay

Product Description

-It can be directly plugged into the contactor

Contactor model: UKC (D) 1-6M, UKC (D) 1-9M

UKC(D)1-12M、UKC(D)1-16M

-1NO+1NC auxiliary contact

-Class 10A tripping conforms to IEC60947-4-1 standard

-Phase loss protection type: UKK

-Standard type: UKH

-Applicable ambient temperature: – 5-40 ℃

-Can be set to manual/automatic reset

-Selectable range reset

-Free tripping design

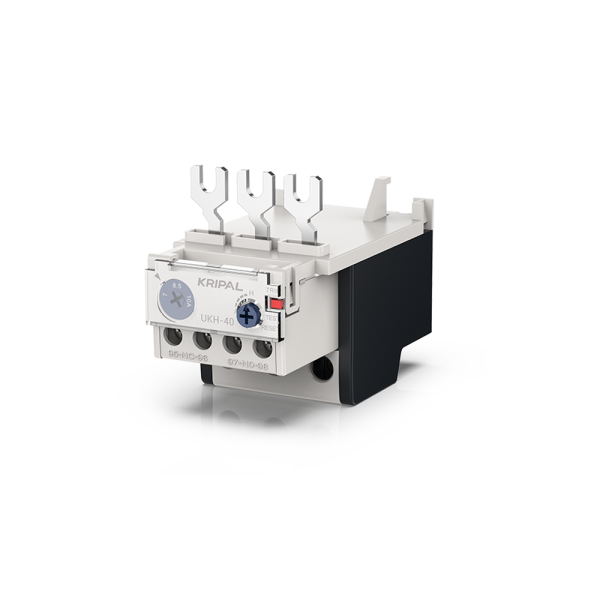

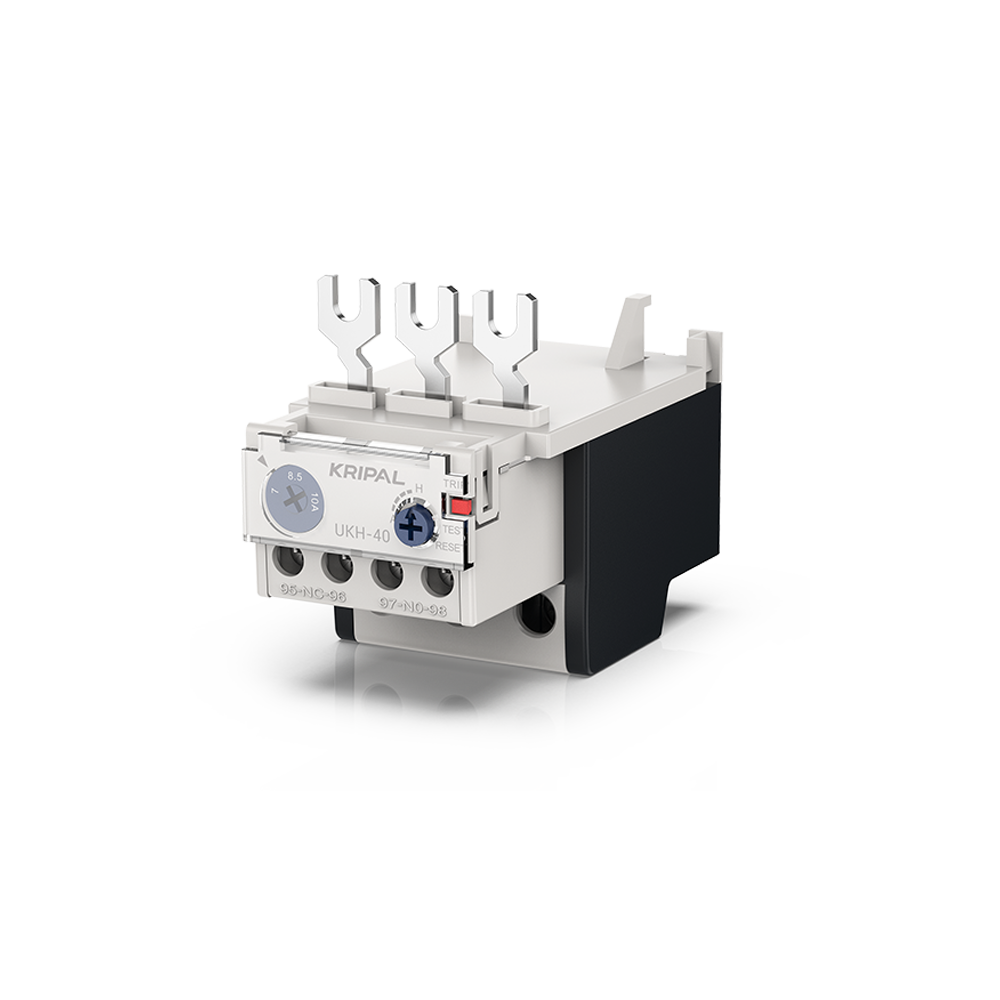

UKH-40Thermal overload relay

Product Description

-Direct and contactor installation

-It can be installed by guide rail or screw by using the mounting bracket

-1NO+1NC tripping contact

-Standard type: UKH

-Phase loss protection type: UKK

-Applicable environment temperature: – 5-40 ℃

-Manual/automatic reset

-Free tripping design

-Bimetallic sheet type

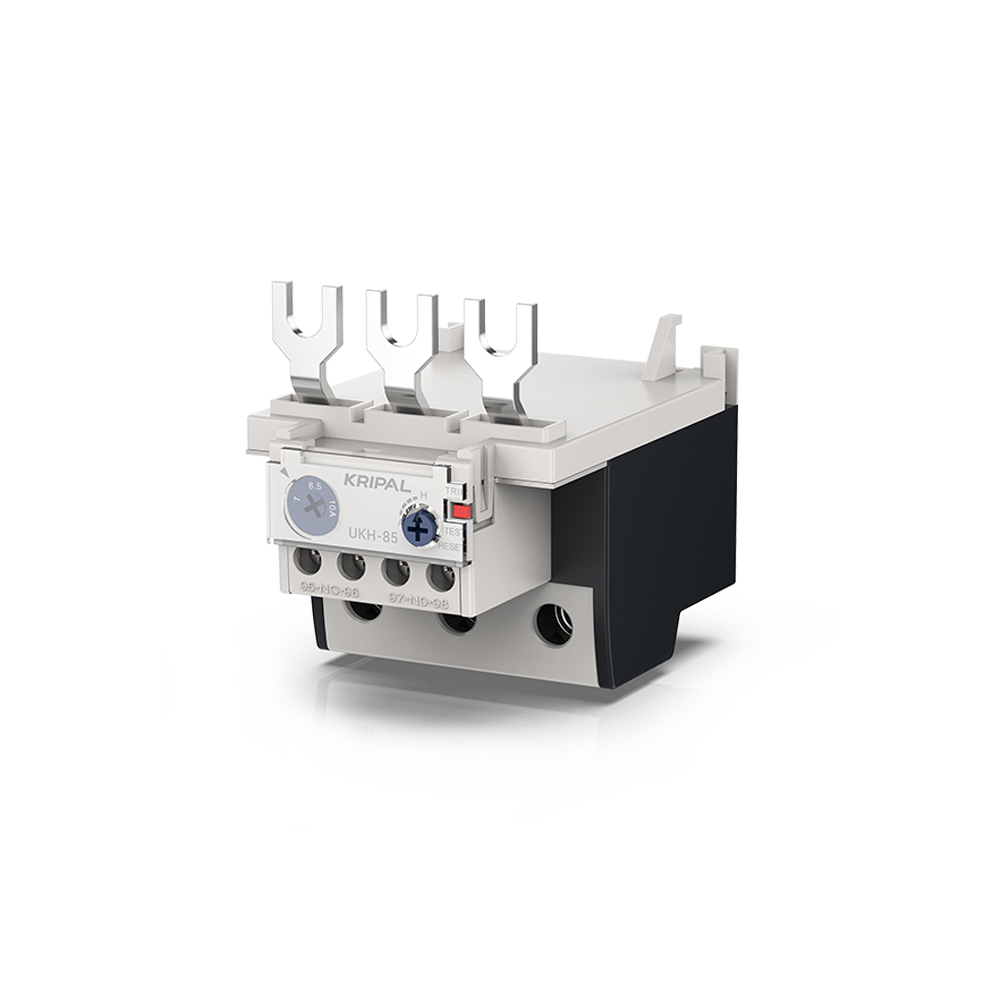

UKH-85Thermal overload relay

Product Description

-Direct and contactor installation

-It can be installed by guide rail or screw by using the mounting bracket

-1NO+1NC tripping contact

-Standard type: UKH

-Phase loss protection type: UKK

-Applicable environment temperature: – 5-40 ℃

-Manual/automatic reset

-Free tripping design

-Bimetallic sheet type

Ampere	"UKH(1-1.6)", "UKH(1.6-2.5)", "UKH(2.5-4)", "UKH(4-6)", "UKH(5-8)", "UKH(6-9)", "UKH(7-10)", "UKH(9-13)", "UKH(12-18)", "UKH(16-22)", "UKH(18-26)", "UKH(24-36)", "UKH(28-40)", "UKH(54-75)", "UKH(63-85)", "UKH(85-125)"
